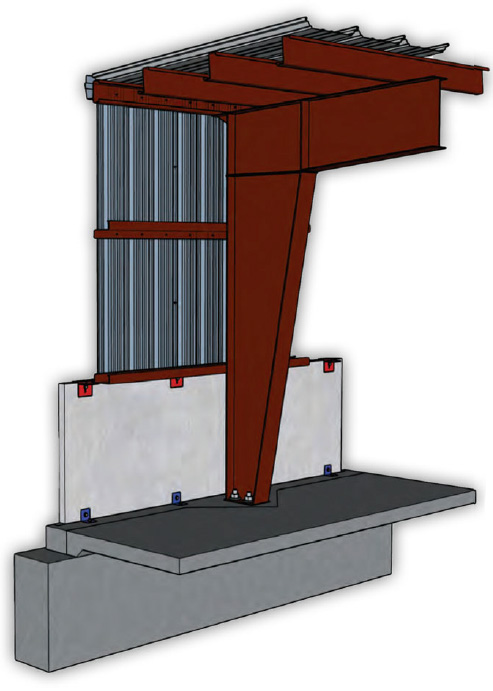

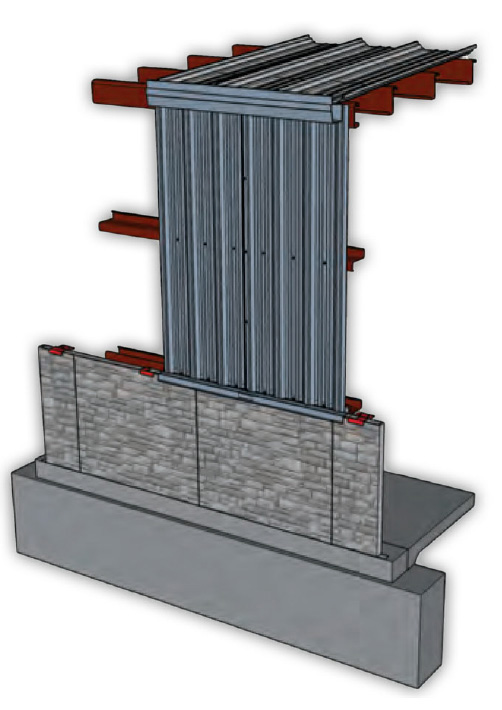

Our new patent pending panel system is a pre-cast concrete panel that rests on the building foundation and easily attaches to the building wall girt.
- Standard gray color
- Integral colors available with custom color mix available
- We allow for a 1/2″ caulk joint between each panel
- All orders come with the panels and
- Tape style caulk for under the panel seal
- Foam tape for the top of the panel

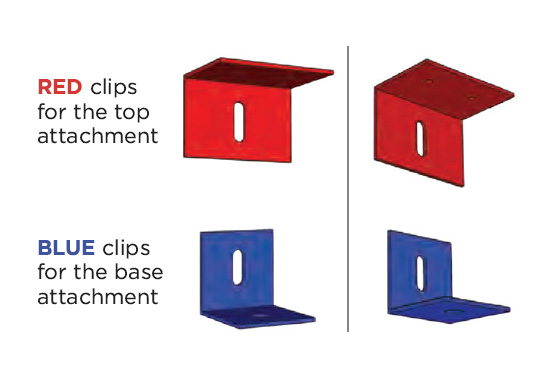

- Single piece BLUE clip for the base attachment
- Sing piece RED clip for the top attachment
- All necessary fasteners
- Your favorite full cavity insulation system with fabric and/or liner easily install with our system
- Custom window/opening cut-outs are provided as needed
- Trim details and trim are by your building company
- Our standard facing includes:
- 8×16 rock face block in a standard coursing
- Sandstone
- Standard plywood
- Our ability to provide facing options is almost limitless
- We can provide custom panels w/ client logos or messaging
- Thin brick in many colors and styles are also available
Our panel system can provide over 50% in cost reduction over other industry veneer options.
- Our panels allow for the sheeting to be moved away from grade eliminating:
- Panel salt rust
- Panel damage
- Rodent access

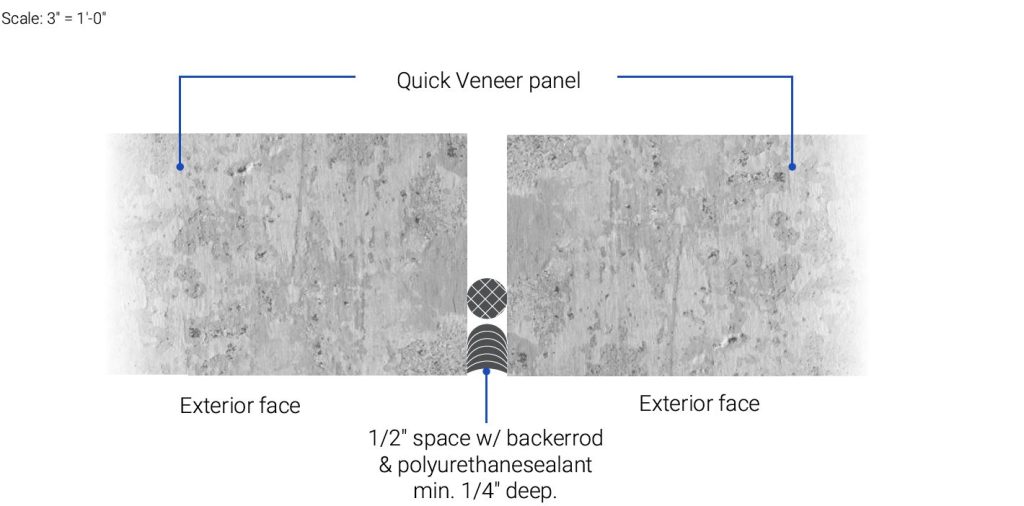

Panel Joint Detail

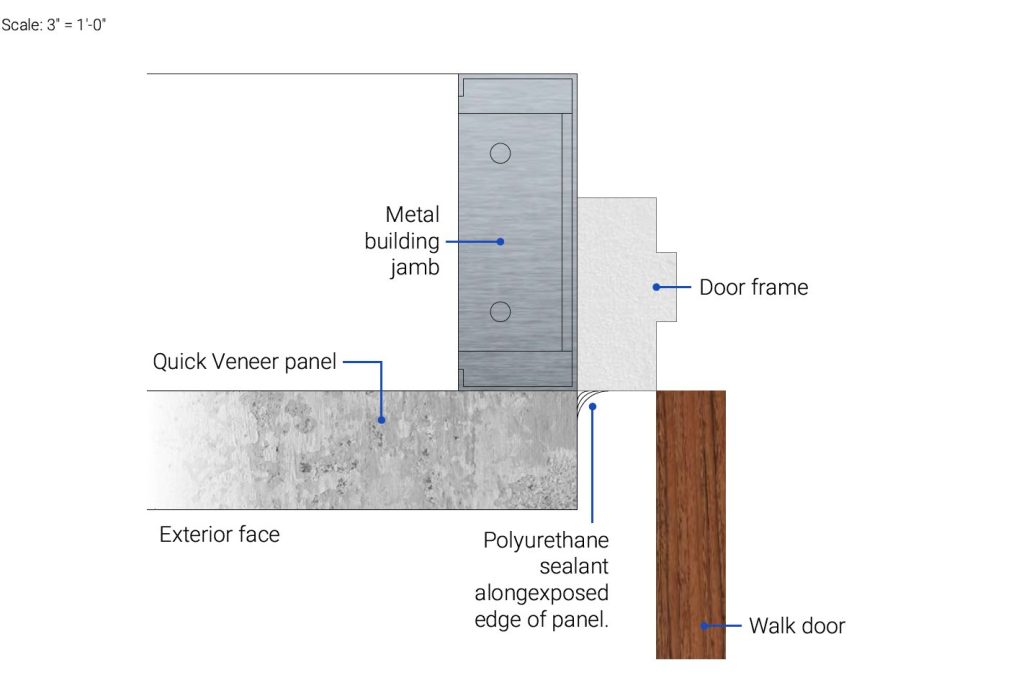

Walk Door Detail

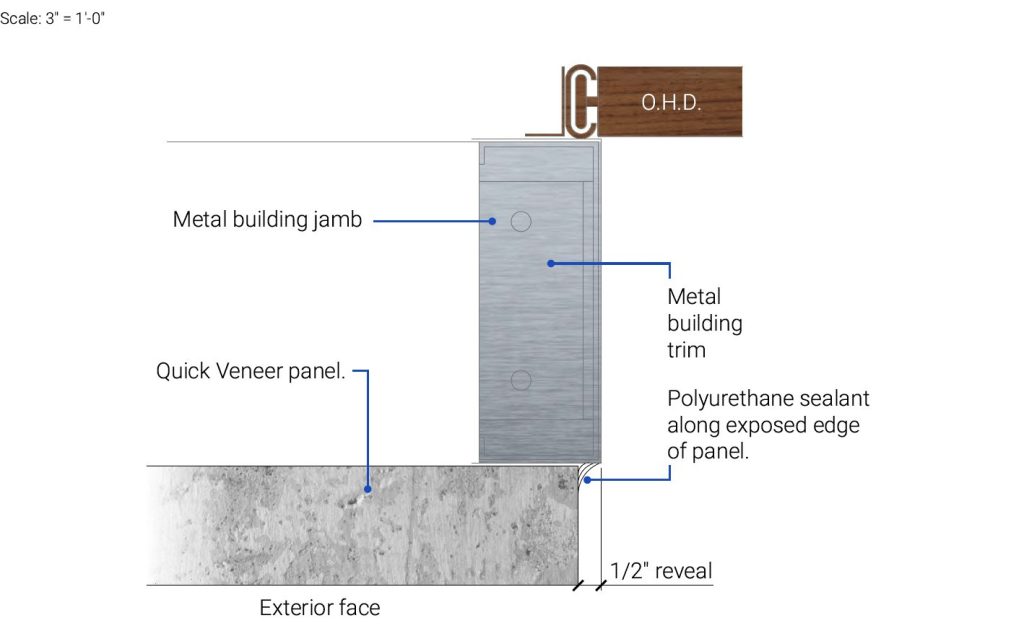

Overhead Door Detail
Upper Clip Attachment Detail
Lower Clip Attachment Detail

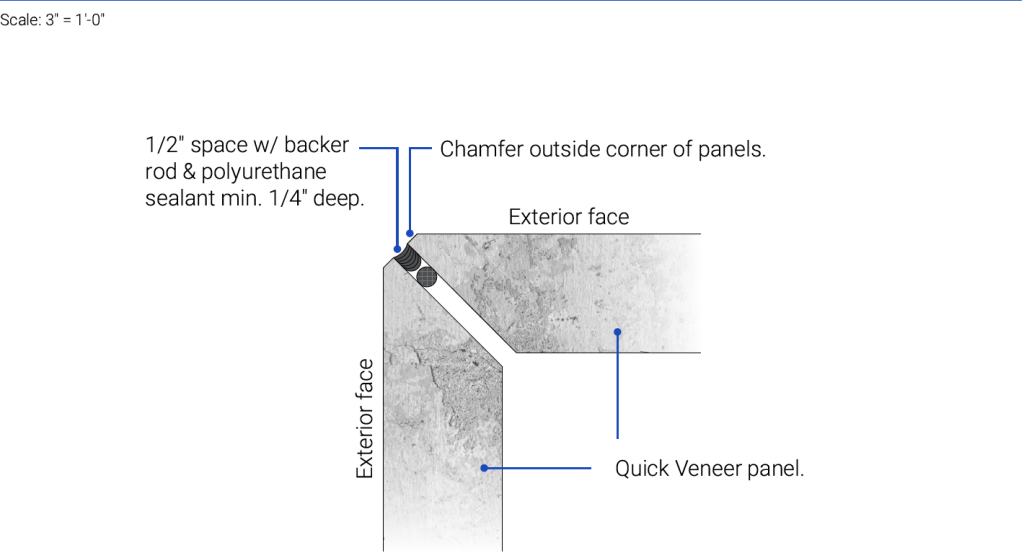

Outside Corner Detail

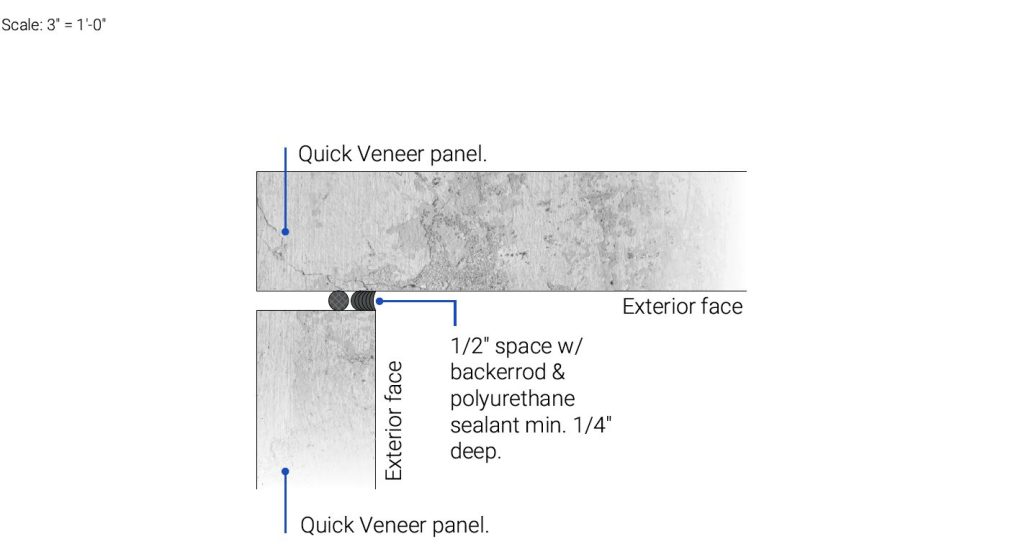

Inside Corner Detail
Our standard panels are 4' tall and 12' long.
Integral Waterproofing with Xypex Admix C-500 / C-500 NF
When it comes to protecting concrete, the best solution isn’t a coating or a membrane — it’s built right into the concrete itself. That’s what Xypex Admix C-500 / C-500 NF delivers.
By adding this crystalline admixture during batching, the concrete gains the ability to self-seal from within. The active ingredients react with moisture to form tiny crystals throughout the concrete’s pores and micro-cracks. These crystals block water and harmful chemicals from getting in — creating a permanent waterproof barrier that works for the life of the structure.
Why Choose Integral Waterproofing?
Permanent protection — not a surface layer that can peel or wear away
Seals cracks automatically (up to 0.5 mm)
Stronger, longer-lasting concrete
Resistant to chemicals, salts, and harsh conditions
Safe for drinking water applications (NSF/ANSI 61 certified)
No VOCs, non-toxic, and environmentally friendly
Cost-effective — installed at the mixing stage, saving time and labor later
Ideal for:
Reservoirs, water tanks, foundations, basements, parking decks, tunnels, pools, bridges, marine structures, and more.
Instead of fighting water from the outside, Xypex helps concrete defend itself from within — a smarter, simpler, and more reliable way to waterproof.
